C8025S24UA AVC 24VDC 0.3A 80x80x25mm Axial Fan

Description

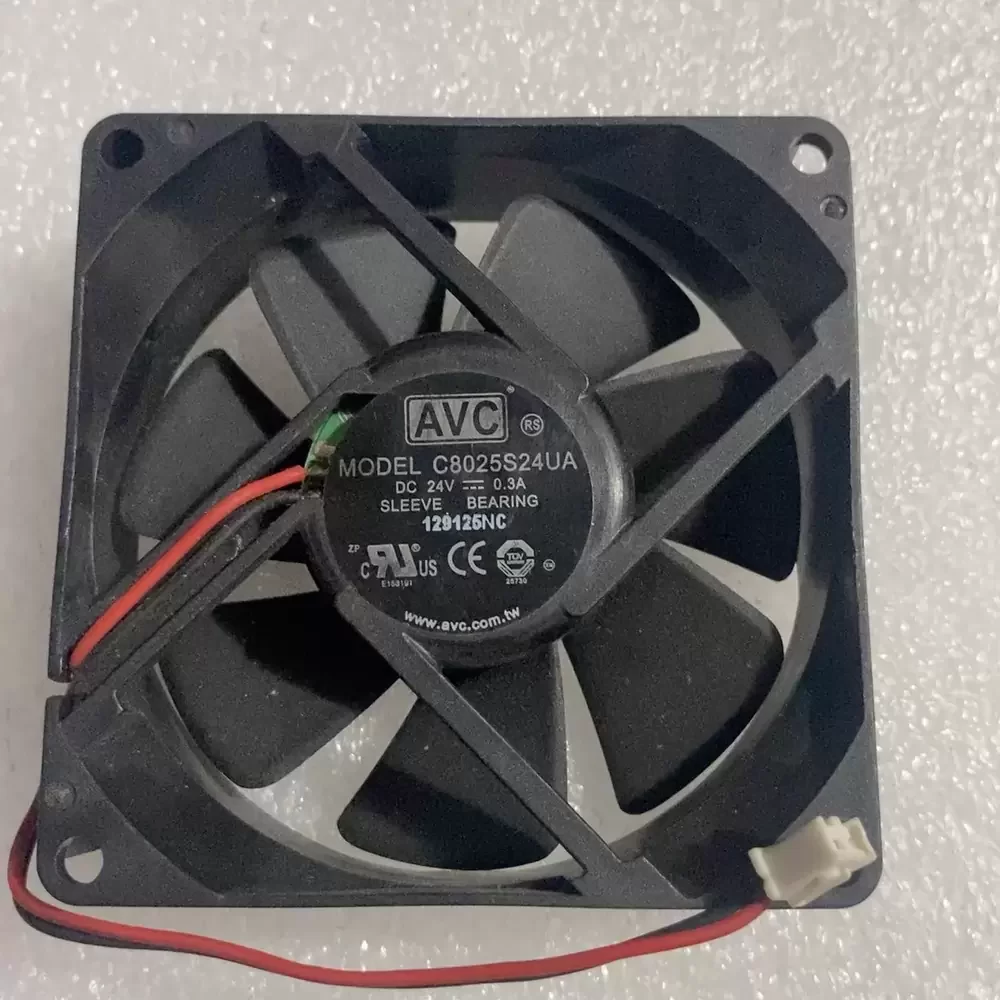

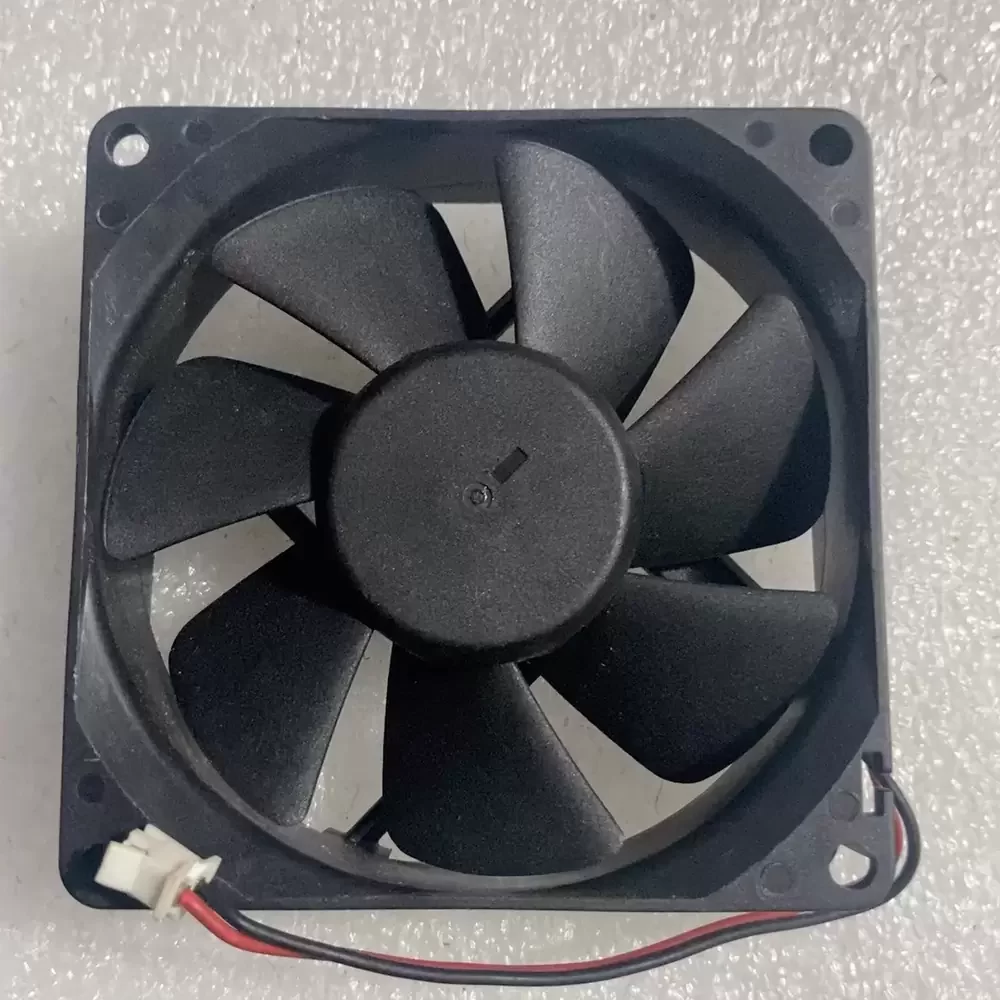

AVC C8025S24UA is an 80 x 80 x 25 mm DC axial fan operating at a nominal 24 VDC with a 0.3 A current rating. The unit is constructed with a high-durability thermoplastic PBT frame and a seven-blade impeller, both meeting UL 94V-0 flammability standards. It utilizes a precision-engineered sleeve bearing system and a brushless DC motor to ensure stable rotational performance. The electrical interface consists of a 2-wire lead configuration for direct power connection. The internal rotor is balanced to minimize vibration during high-speed operation, providing consistent static pressure and volumetric airflow for thermal management.

C8025S24UA Specifications
Model: C8025S24UA
Brand: AVC (Asia Vital Components)
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.3 A
Input Power: 7.2 W
Rated Speed: 4500 RPM
Maximum Airflow: 45.0 CFM
Maximum Static Pressure: 5.8 mmH2O
Noise Level: 38.0 dB(A)
Bearing Type: Sleeve Bearing
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Termination: 2-wire lead wires (Red/Black)
Motor Type: Brushless DC
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 85 g

C8025S24UA Applications
Primary applications include integration into industrial frequency inverters, server chassis enclosures, and telecommunications power supply modules. Deployed within CNC machine control cabinets and automated manufacturing equipment for localized thermal management of high-density electronic components.
