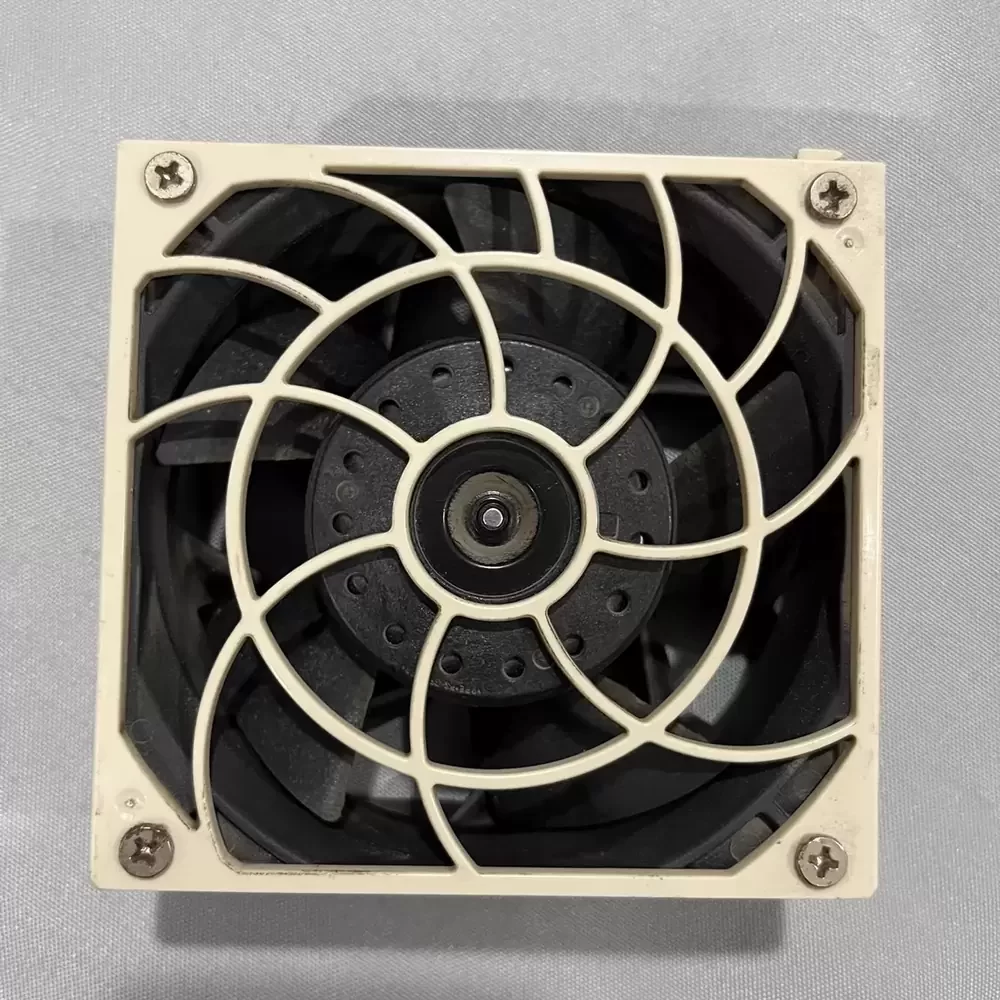

PFR0912XHE Delta 12VDC 3.6A 92x92x38mm Axial Cooling Fan

Description

The Delta PFR0912XHE is a high-performance 92 mm axial cooling fan engineered for extreme thermal management in enterprise-level hardware. Operating at a nominal 12 VDC with a high current draw of 3.6 A, this unit delivers a massive airflow of 185.55 CFM and a rotational speed of 11500 RPM. It features a robust dual ball bearing system designed for continuous 24/7 operation and a 4-pin PWM interface for precise speed control. With a static pressure capability optimized for high-impedance environments, it effectively mitigates heat in densely packed server enclosures and workstations.

PFR0912XHE Specifications
Model Number: PFR0912XHE-W2T
Brand: Delta Electronics
Category: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 3.6 A
Input Power: 43.2 W
Rated Speed: 11500 RPM
Maximum Airflow: 185.55 CFM (5.254 m³/min)
Maximum Static Pressure: 51.17 mmH2O (2.014 IN H2O)
Noise Level: 71.0 dB-A
Bearing Type: Dual Ball Bearing
Connector: 4-Pin PWM
Weight: 260 g
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 75 °C
Life Expectancy: 70,000 Hours at 40 °C
Protection: Over-current Protection, Locked Rotor Protection

PFR0912XHE Applications
High-density server rack cooling, enterprise workstation thermal management, and industrial chassis ventilation. Integration into network switches, routers, and high-performance computing (HPC) systems requiring high static pressure airflow.
