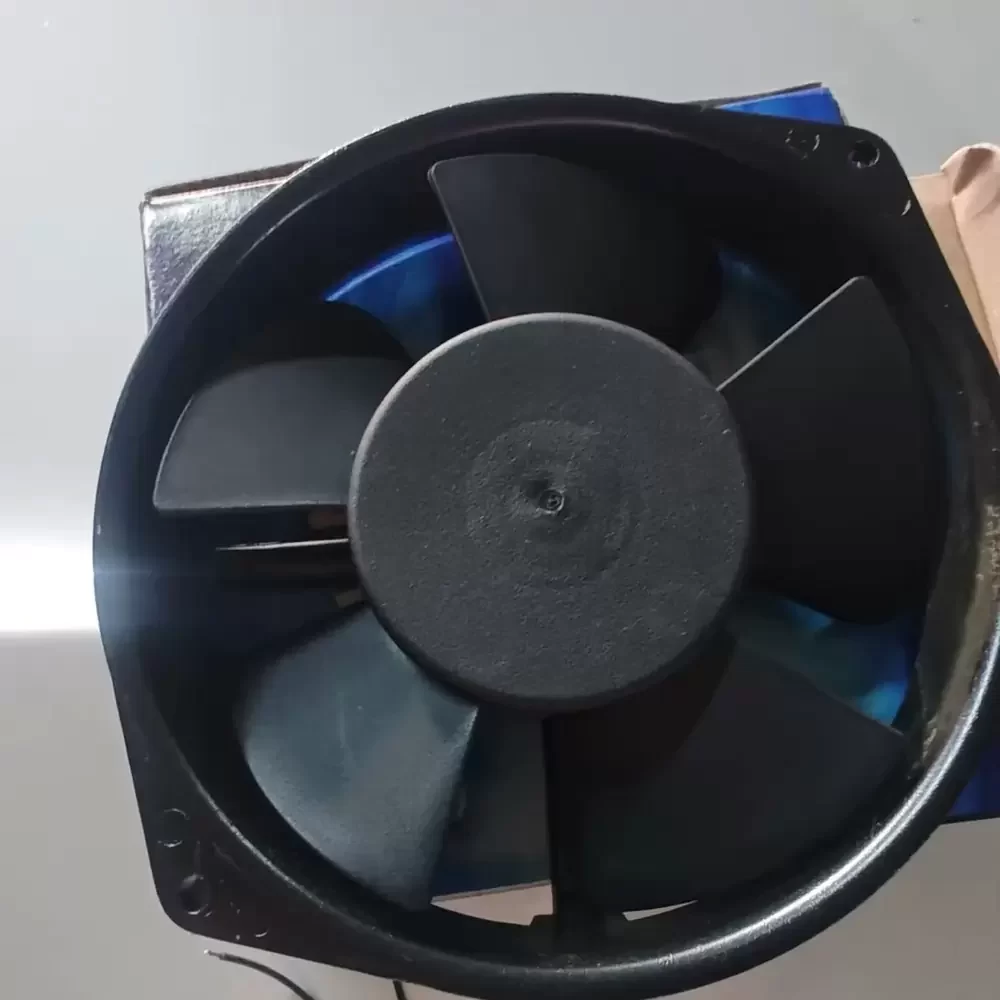

Description
The Commonwealth FP-108CX-S1B is a robust AC Axial Fan engineered for high-demand industrial thermal management applications. Utilizing a precision Ball Bearing architecture, this unit ensures minimal frictional resistance and extended operational service life under continuous loads. The aerodynamic impeller is housed within a die-cast aluminum frame, providing superior structural rigidity and effective heat dissipation. Designed for 220/240VAC operation, the motor assembly features impedance protection to prevent burnout, optimizing thermal impedance and ensuring reliability in volatile electrical environments. This fan delivers consistent airflow performance essential for maintaining system stability in critical machinery, balancing high static pressure with efficient volumetric air movement.

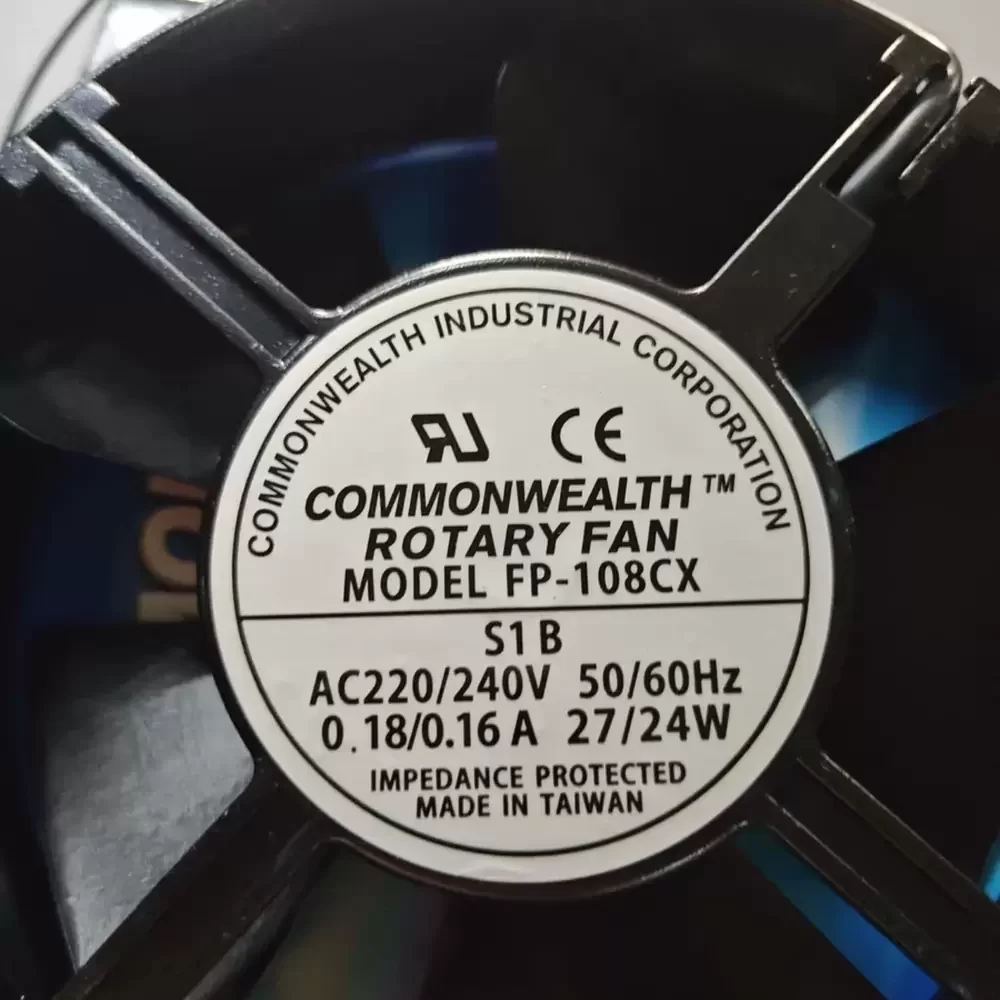

Model Number: FP-108CX-S1B
Brand: Commonwealth (CIC)
Product Type: AC Axial Fan
Rated Voltage: 220/240 VAC
Frequency: 50/60 Hz
Rated Current: 0.18 / 0.16 A
Power Input: 27 / 24 W
Rated Speed: 2900 / 3300 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 190 / 235 CFM (322.8 / 399.2 m³/h)
Max. Static Pressure: 16.5 / 21.0 mmH₂O (161.8 / 205.9 Pa / 0.65 / 0.83 inH₂O)
Dimensions: 172 x 150 x 38 mm
Weight: 840 g
Housing Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Noise Level: 50 / 55 dBA
Motor Type: Capacitor Induction Motor
Ingress Protection: IP20 (Standard)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Terminal / Lead Wire
Mounting Orientation: Any
The FP-108CX-S1B is specifically calibrated for integration into industrial enclosures where space and airflow efficiency are paramount. Common deployment scenarios include server rack cooling systems, telecommunications cabinets, and power supply units requiring consistent thermal regulation. The FP-108CX-S1B also serves effectively in CNC machinery control panels and medical instrumentation, ensuring critical components remain within safe operating temperature ranges to prevent thermal throttling or hardware failure.
