Description

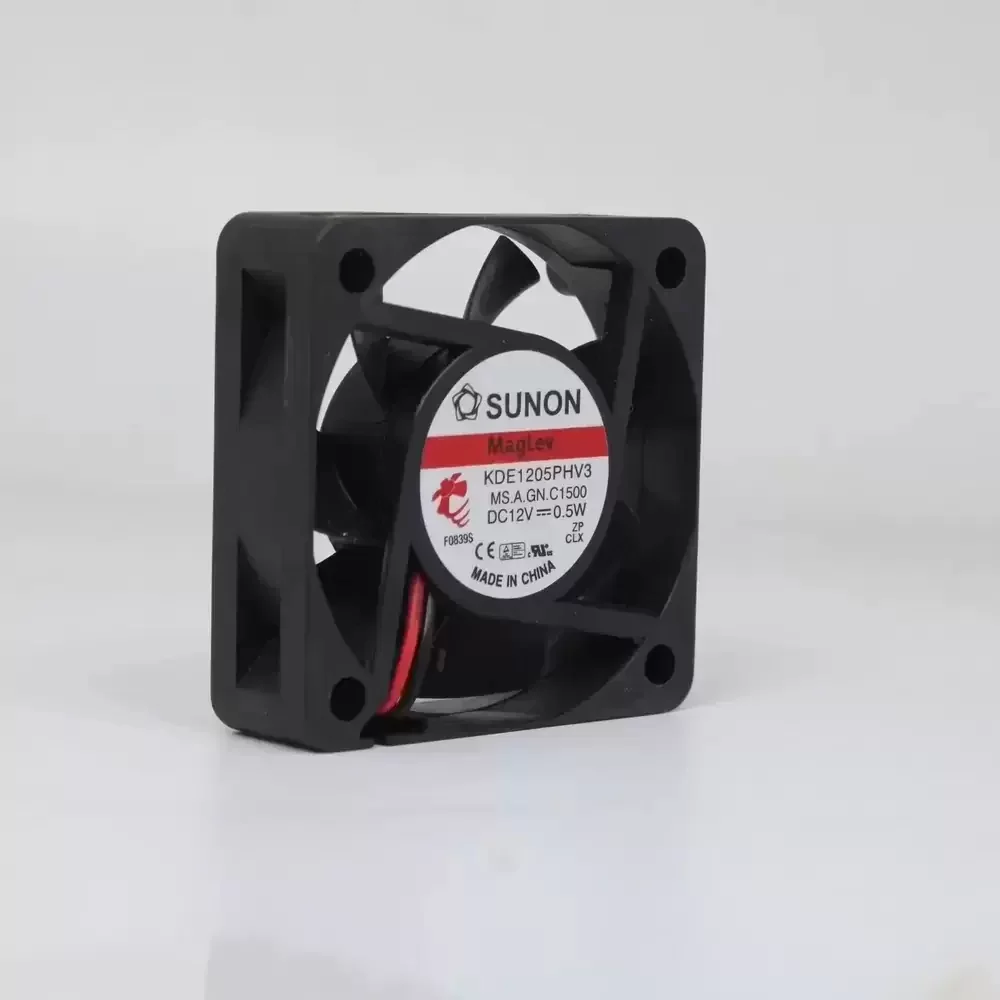

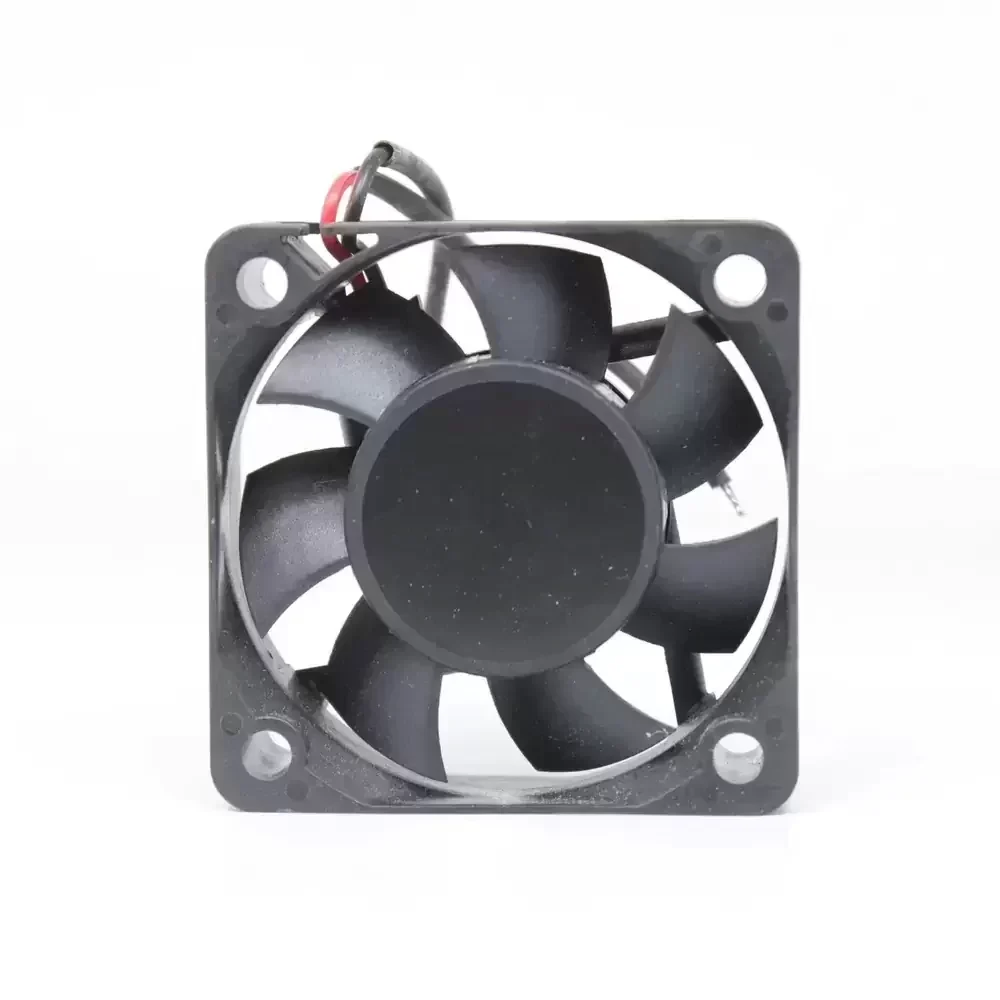

The SUNON KDE1205PHV3 is a precision-engineered DC axial fan featuring Sunon’s proprietary MagLev (Magnetic Levitation) motor technology. This advanced Vapo bearing system eliminates physical contact between the shaft and bearing, significantly reducing noise and vibration while extending operational lifespan. Designed with a specialized impeller geometry, it optimizes airflow efficiency while maintaining low power consumption of 0.5W. The unit ensures superior thermal impedance management and structural rigidity, making it an ideal solution for sensitive electronic cooling applications requiring reliable, long-term performance in compact enclosures.
Model Number: KDE1205PHV3
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Power Consumption: 0.5W
Rated Current: 0.042 A
Rated Speed: 3700 RPM
Bearing Type: MagLev (Vapo Bearing)
Max. Air Flow: 10.2 CFM (17.3 m³/h / 0.29 m³/min)
Max. Static Pressure: 0.12 inH₂O (29.9 Pa / 3.05 mmH₂O)
Dimensions: 50 x 50 x 15 mm
Weight: 38 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 26 dBA
Frame Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Motor Type: Brushless DC
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP5X (Dust Protected)
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, CUR, TUV
This cooling solution is specifically engineered for thermal management in variable frequency drives and industrial inverters, as indicated by the KDE1205PHV3 design parameters. The KDE1205PHV3 is also widely utilized in compact server chassis, network switches, and telecommunications equipment where space is limited but reliability is paramount. Its magnetic levitation system makes it suitable for medical instrumentation and continuous-duty automation systems requiring minimal acoustic interference.
