Description

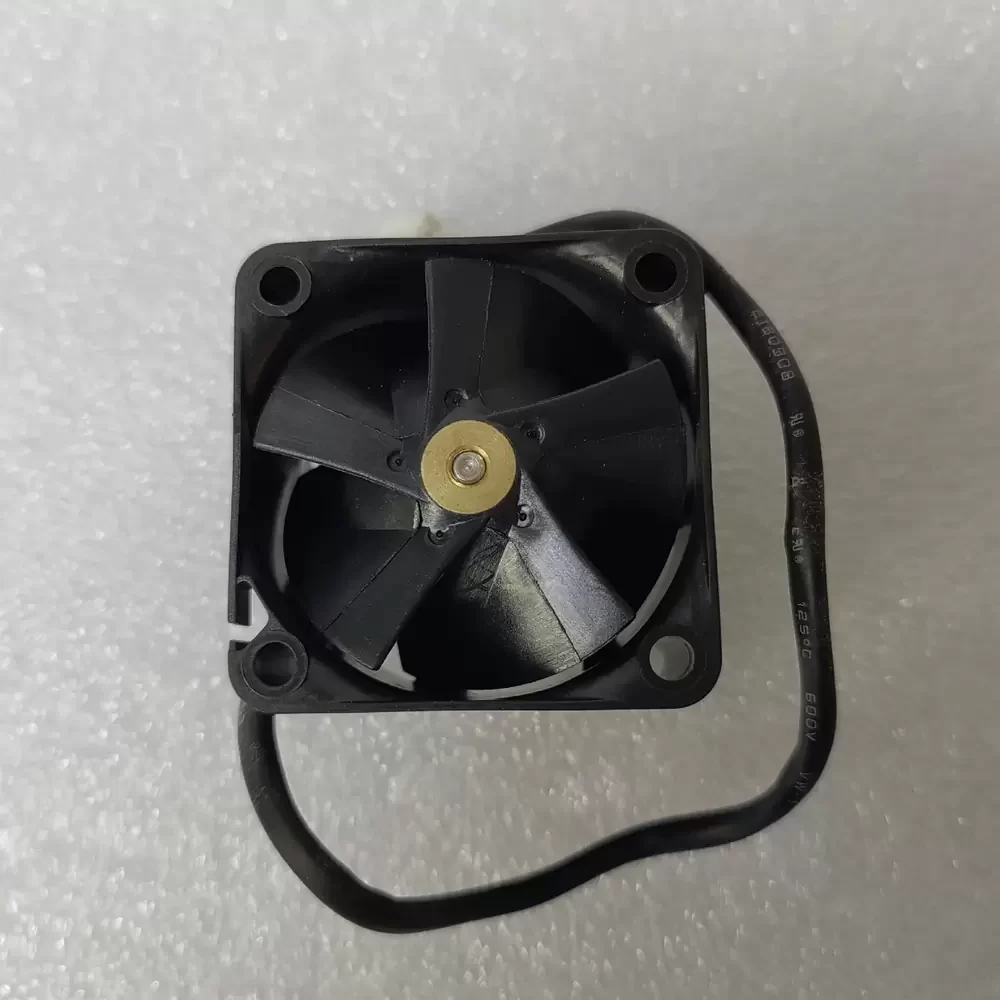

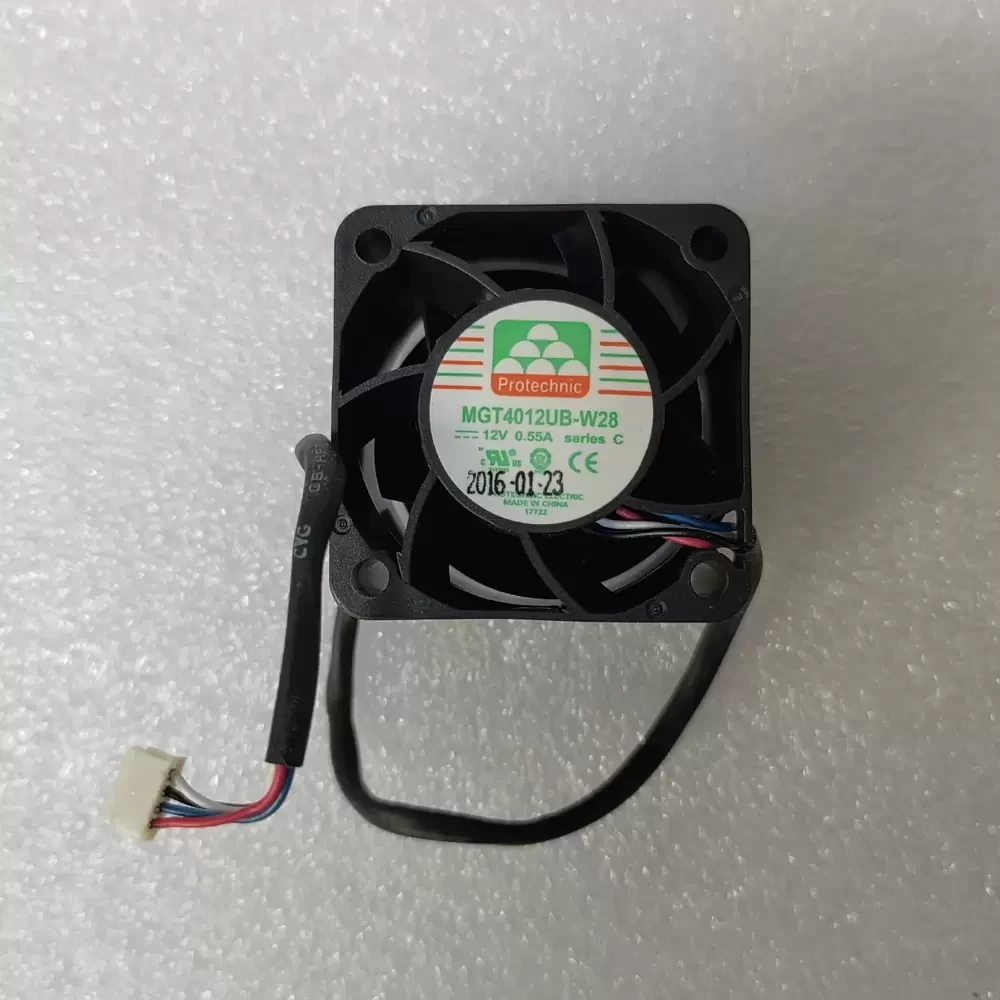

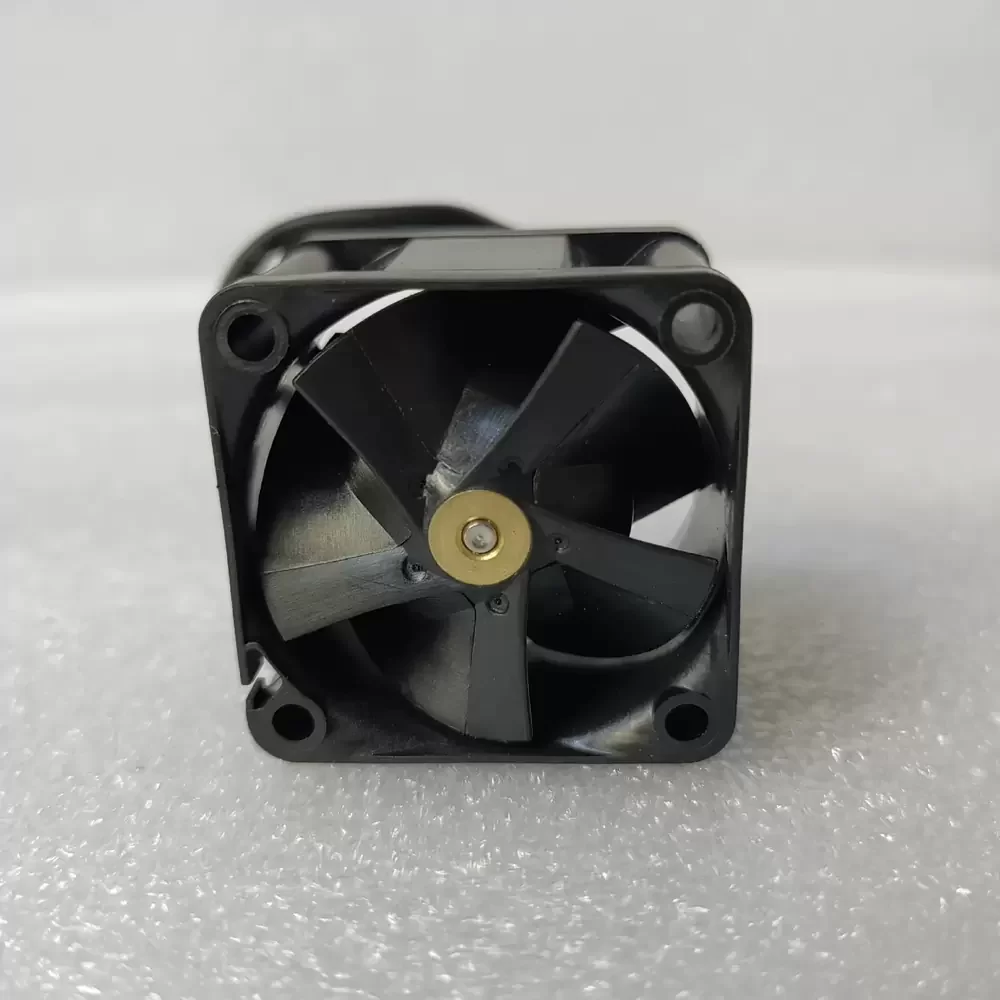

The Protechnic MGT4012UB-W28 is a high-performance DC axial fan engineered for mission-critical thermal management in dense electronic enclosures. Featuring advanced brushless DC motor technology and a robust dual ball bearing architecture, this unit ensures exceptional rotational stability and extended service life under continuous high-speed operation. The aerodynamic impeller design is optimized to maximize static pressure generation, effectively overcoming high thermal impedance in server racks and power amplifiers while maintaining structural rigidity and minimizing vibration at peak RPM.
Model Number: MGT4012UB-W28
Brand: Protechnic (Magic)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.55 A
Power: 6.60 W
Rated Speed: 15000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 26.5 CFM (45.0 m³/h / 0.75 m³/min)
Max. Static Pressure: 1.45 inH₂O (361 Pa / 36.8 mmH₂O)

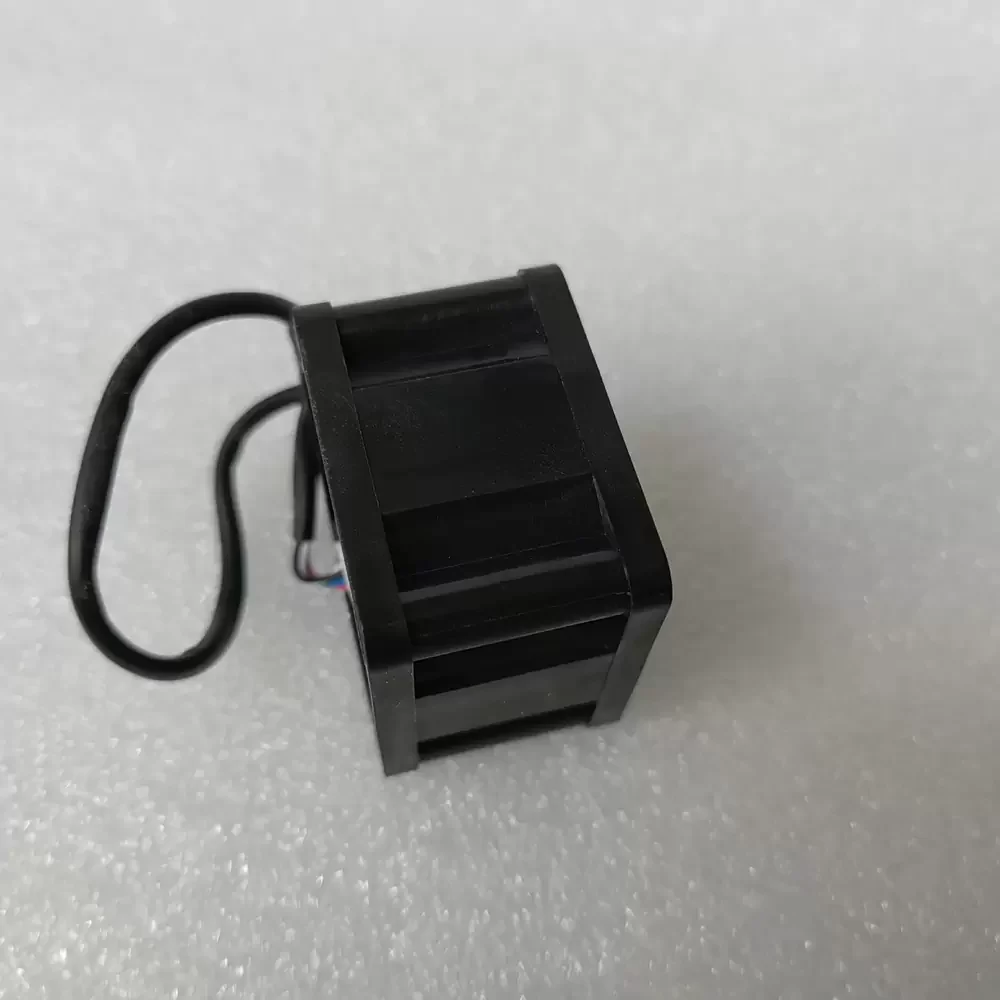

Dimensions: 40 x 40 x 28 mm
Weight: 45 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 56.0 dBA
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 4-Wire Lead
Speed Control: PWM / Tachometer Output
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Certifications: UL, cUL, TUV, CE
Designed specifically for high-impedance environments, the MGT4012UB-W28 is extensively used in 1U server racks and high-wattage power supply units where concentrated airflow is required. The compact 40x28mm footprint allows the MGT4012UB-W28 to fit seamlessly into tight chassis configurations, providing critical cooling for power amplifiers, RAID controllers, and network switches that demand consistent thermal regulation to prevent hardware throttling.
