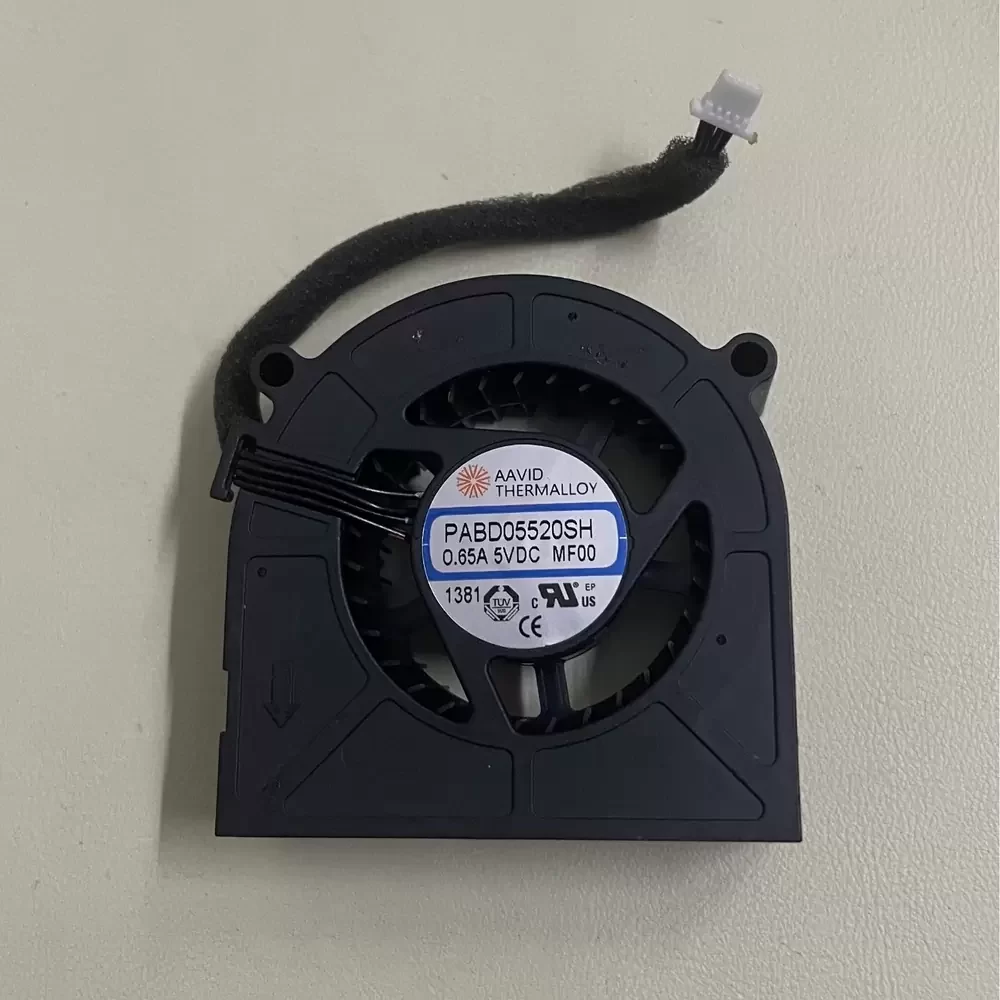

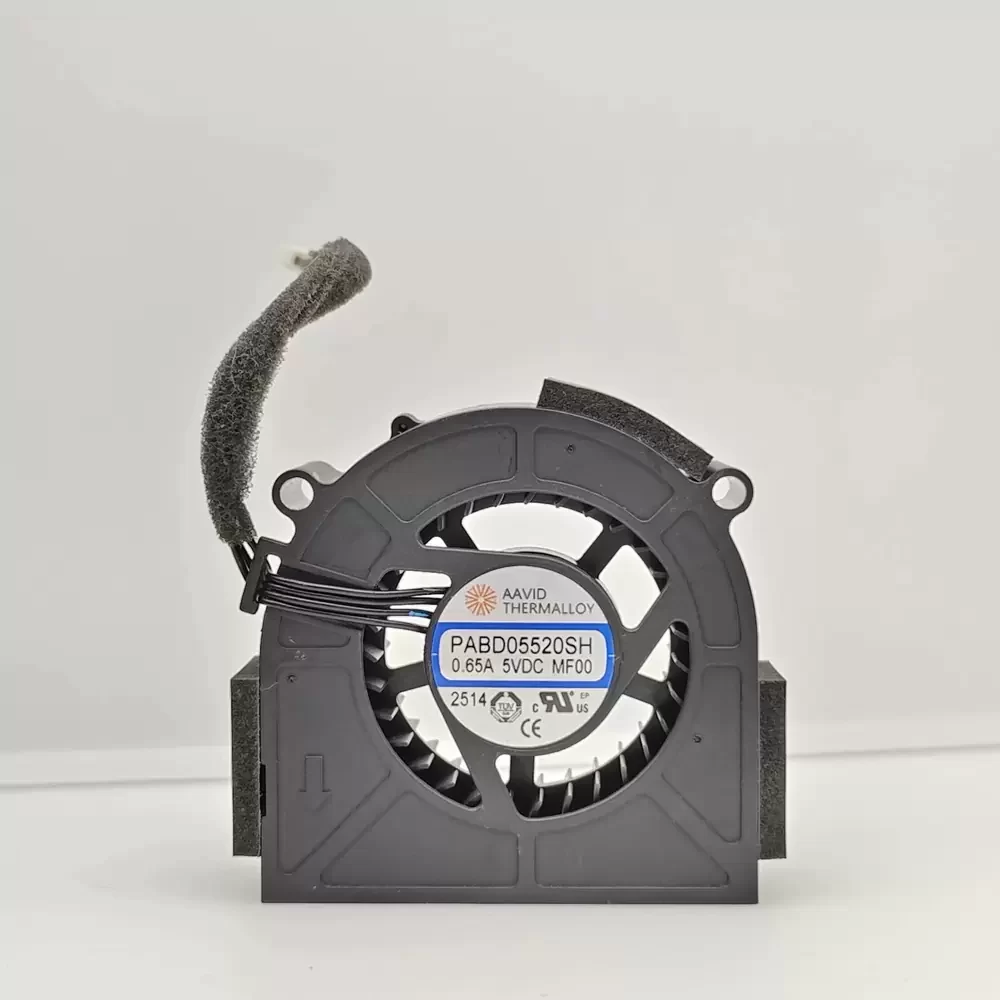

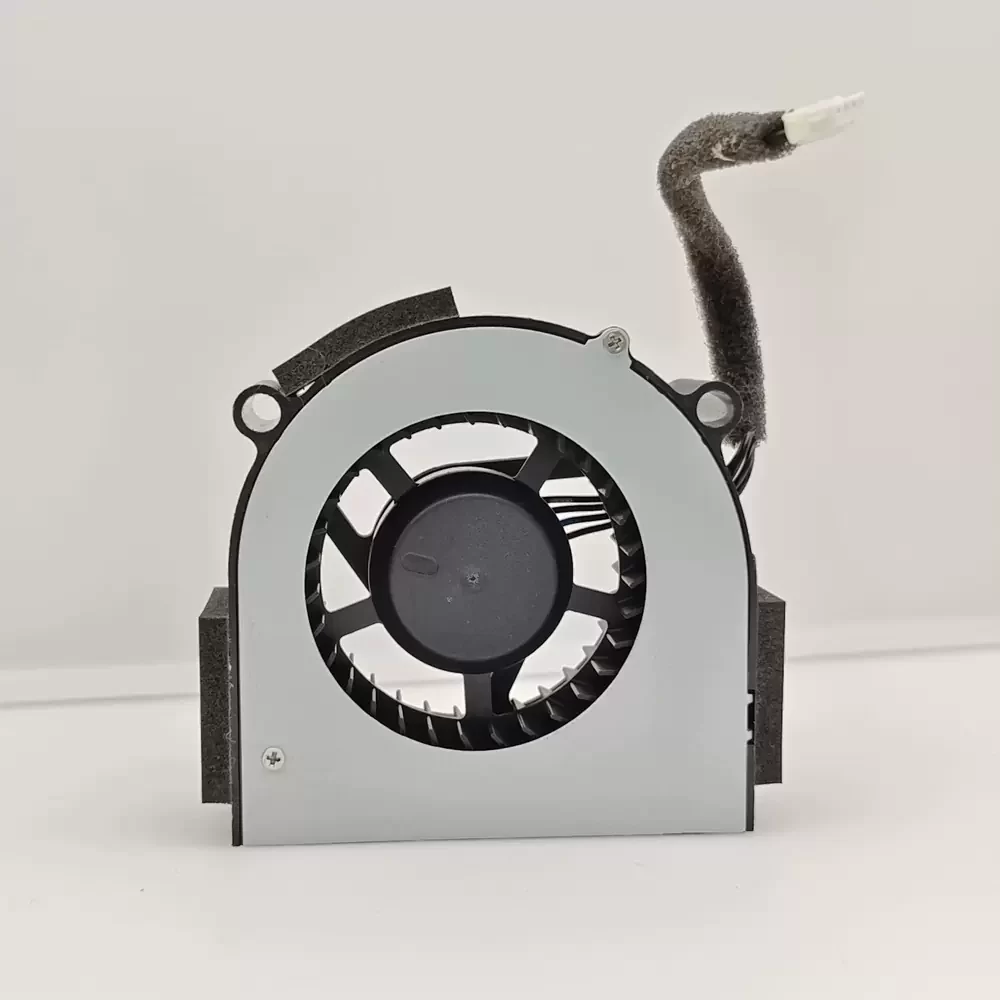

PABD05520SH-MF00 AAVID 5VDC 0.65A 55x55x20mm Blower Fan

Description

AAVID PABD05520SH-MF00 is a 55 x 55 x 20 mm centrifugal blower fan operating at 5 VDC with a 0.65 A current rating. It features a brushless DC motor housed in a PBT plastic frame with a 4-pin PWM interface for precise speed control. The internal mechanism utilizes a high-performance bearing system to maintain rotational stability and airflow efficiency through a side-discharge outlet.

PABD05520SH-MF00 Specifications
Model: PABD05520SH-MF00
Brand: AAVID
Category: Centrifugal Blower Fan
Voltage: 5 VDC
Current: 0.65 A
Dimensions: 55 x 55 x 20 mm
Interface: 4-pin PWM
Motor Type: Brushless DC
Housing Material: PBT Plastic
Impeller Material: PBT Plastic
Bearing Type: Dual Ball Bearing
Airflow Direction: Side Discharge
Operating Voltage Range: 4.5 to 5.5 VDC
Features: Restart Protection, FG Signal

PABD05520SH-MF00 Applications
Primary applications include integration into Formovie S5 laser projectors, compact DLP projection systems, and portable home theater hardware. Deployed within internal thermal modules to facilitate heat dissipation from optical engines and power supply components.
