109E2024V0S03 Sanyo Denki 24VDC 1.9A 200x70mm Axial Fan

Description

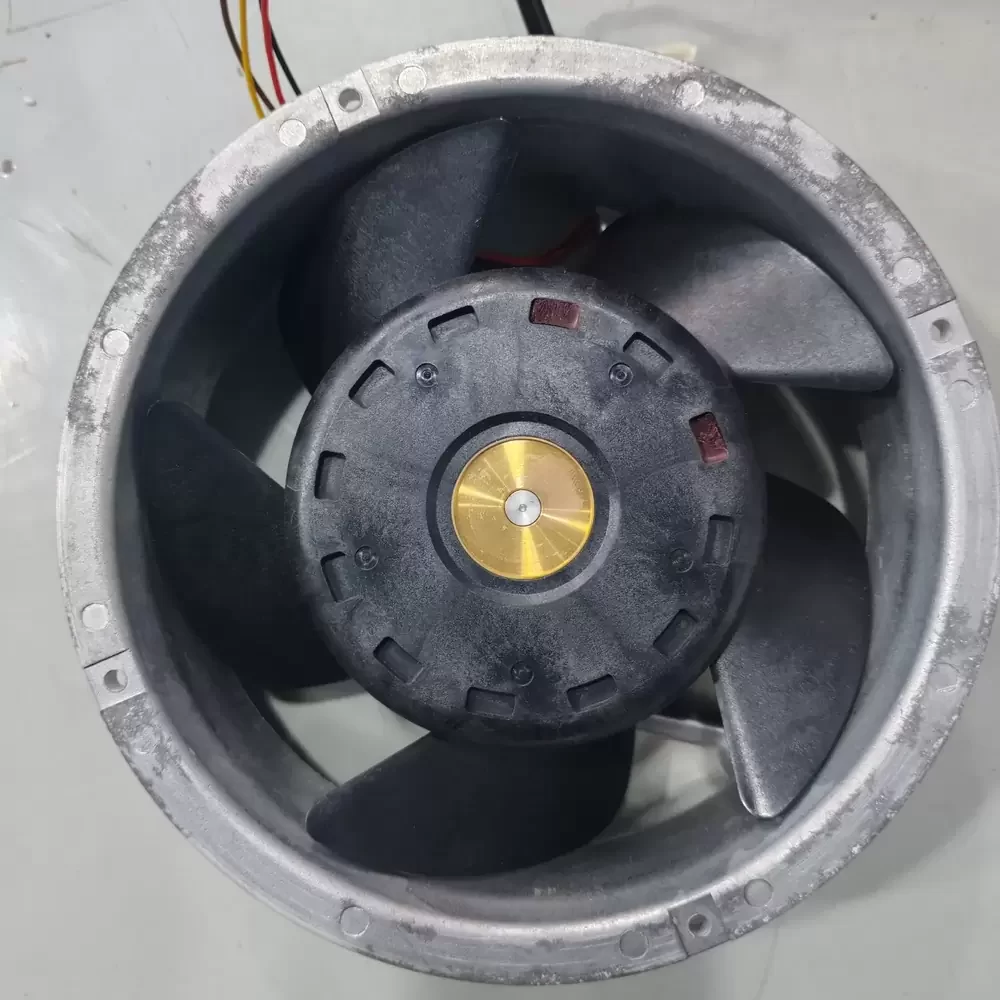

Sanyo Denki 109E2024V0S03 200 mm diameter, 70 mm thickness, 24 VDC, 10.45 m3/min axial fan features a round aluminum frame and plastic impeller. Operating at a nominal 24 VDC with a 1.9 A current draw, it delivers a maximum airflow of 10.45 m3/min and a static pressure of 287.1 Pa. The unit utilizes a dual ball bearing system to maintain a rated speed of 3200 RPM while generating a noise level of 57 dB(A). Its 4-wire interface supports advanced control and monitoring via pulse or PWM signals.

109E2024V0S03 Specifications
Model: 109E2024V0S03
Brand: Sanyo Denki
Series: San Ace 200
Category: DC Axial Fan
Rated Voltage: 24 VDC
Operating Voltage Range: 21.6 to 26.4 VDC
Rated Current: 1.9 A
Rated Input: 45.6 W
Rated Speed: 3200 RPM
Max Airflow: 10.45 m3/min
Max Airflow (CFM): 369 CFM
Max Static Pressure: 287.1 Pa
Max Static Pressure (inchH2O): 1.15 inchH2O
Noise Level: 57 dB(A)
Frame Size: 200 mm diameter
Thickness: 70 mm
Frame Material: Aluminum
Impeller Material: Plastic
Bearing Type: Dual Ball Bearing
Termination: 4-wire leads
Operating Temperature: -10 to +60 °C
Expected Life: 40000 hours at 60 °C
Mass: 1800 g
Sensor Type: Pulse Sensor / PWM Control

109E2024V0S03 Applications
Primary applications include integration into high-density server racks, industrial power supply units, and telecommunications base stations. Deployed within CNC machine control cabinets and large-scale medical imaging equipment for critical thermal management of high-heat electronic components.
