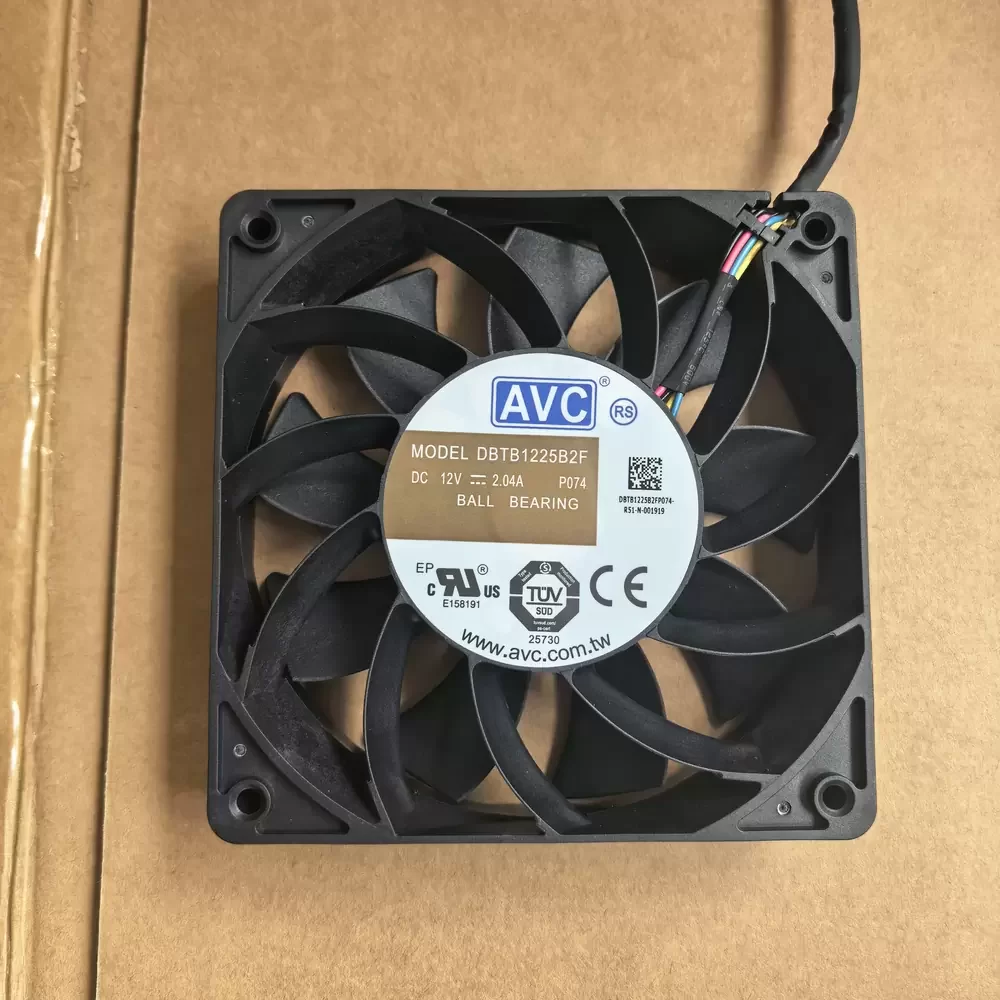

DBTB1225B2F-P074 AVC 12VDC 2.04A 120x120x25mm Cooling Fan

Description

AVC DBTB1225B2F-P074 is a 120 x 120 x 25 mm axial fan operating at 12 VDC with a 2.04 A current rating and 24.48 W power consumption. The unit features a dual ball bearing system and a 4-wire PWM interface for precise speed control. Constructed with a PBT UL94V-0 plastic frame and impeller, it utilizes a brushless DC motor to achieve high rotational speeds and significant static pressure. The internal circuitry includes polarity protection and auto-restart functionality.

DBTB1225B2F-P074 Specifications
Model: DBTB1225B2F-P074
Brand: AVC (Asia Vital Components)
Category: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 2.04 A
Input Power: 24.48 W
Rated Speed: 6000 RPM
Maximum Airflow: 180.5 CFM
Maximum Airflow: 5.11 m³/min
Static Pressure: 25.4 mmH2O
Static Pressure: 1.00 inH2O
Noise Level: 64.5 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-pin PWM (Pulse Width Modulation)
Wire Configuration: Red (+), Black (-), Yellow (FG), Blue (PWM)
Material Frame: Plastic (PBT UL 94V-0)
Material Impeller: Plastic (PBT UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Safety Certifications: UL, TUV, CE, RoHS Compliant
Weight: 280 g
Protection: Polarity Protection, Auto-Restart

DBTB1225B2F-P074 Applications
Primary applications include integration into high-density server rack enclosures, industrial workstation chassis, and telecommunications switching equipment. Deployed within power supply units and CNC control cabinets requiring high-pressure thermal management.
