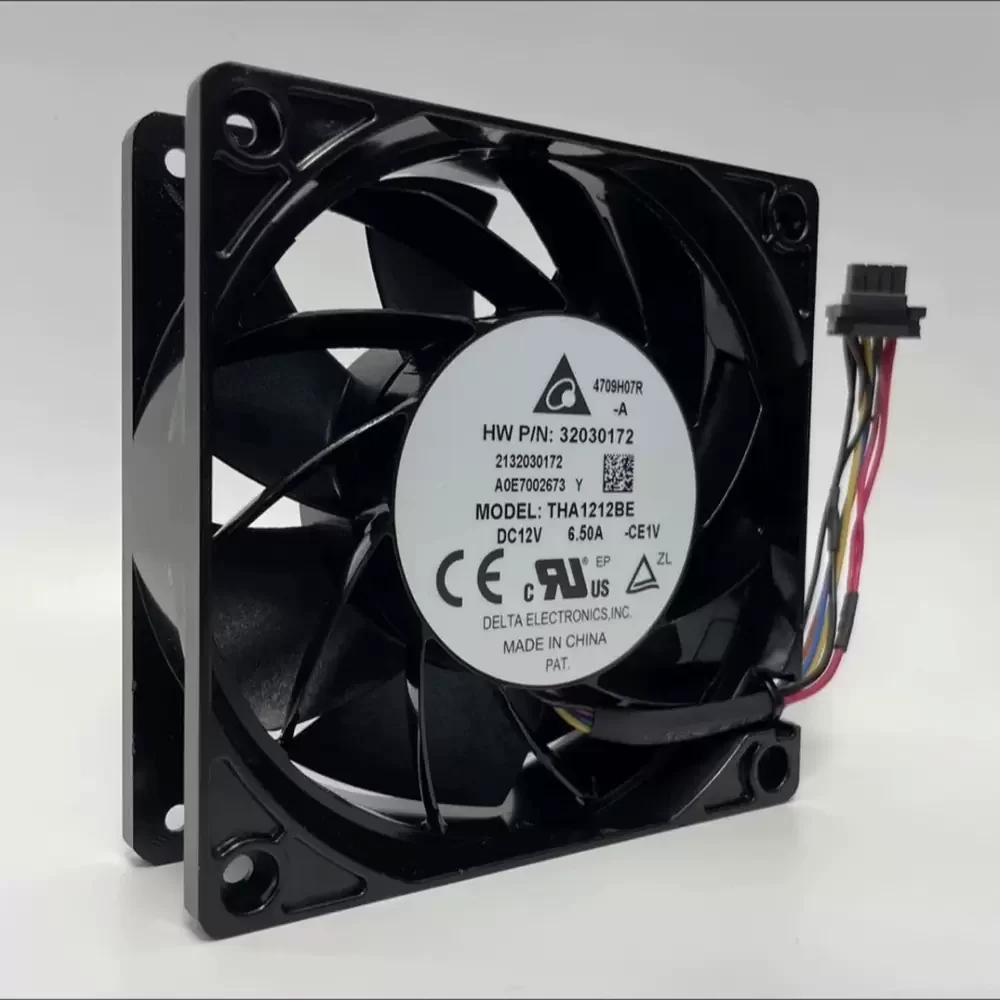

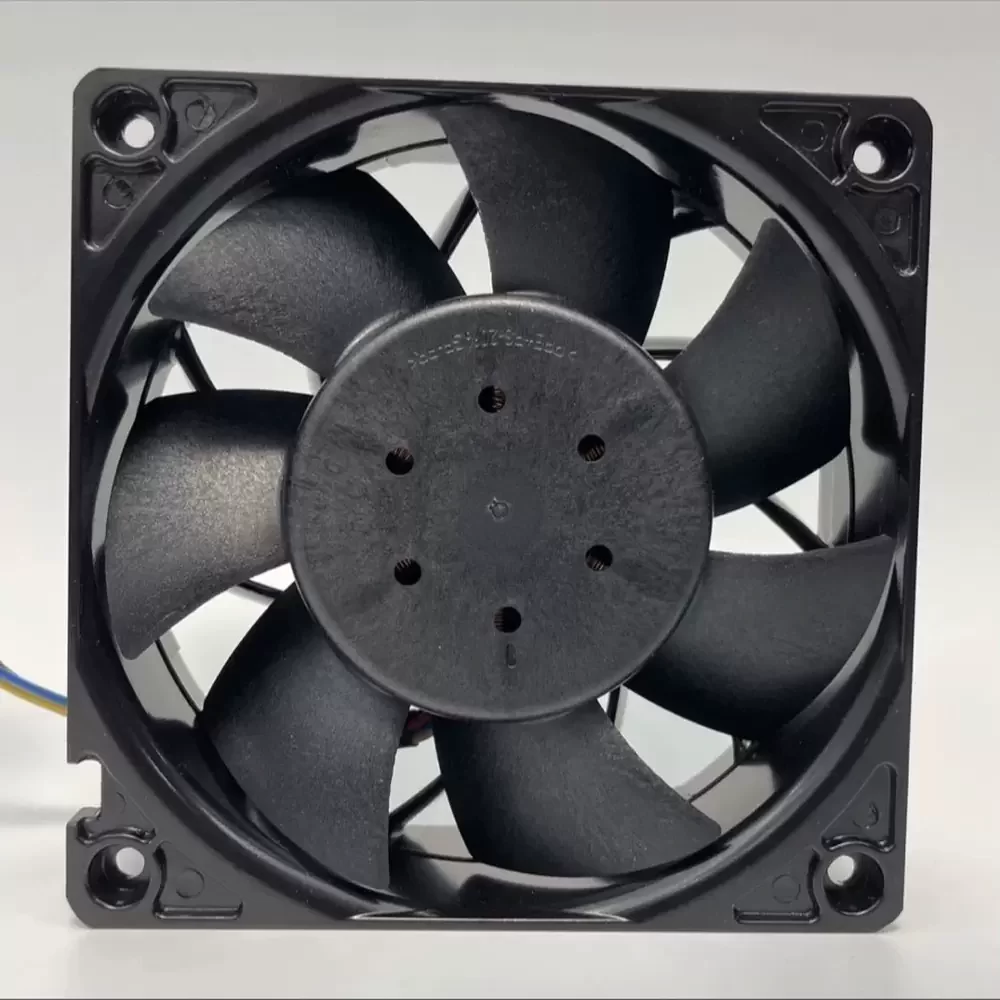

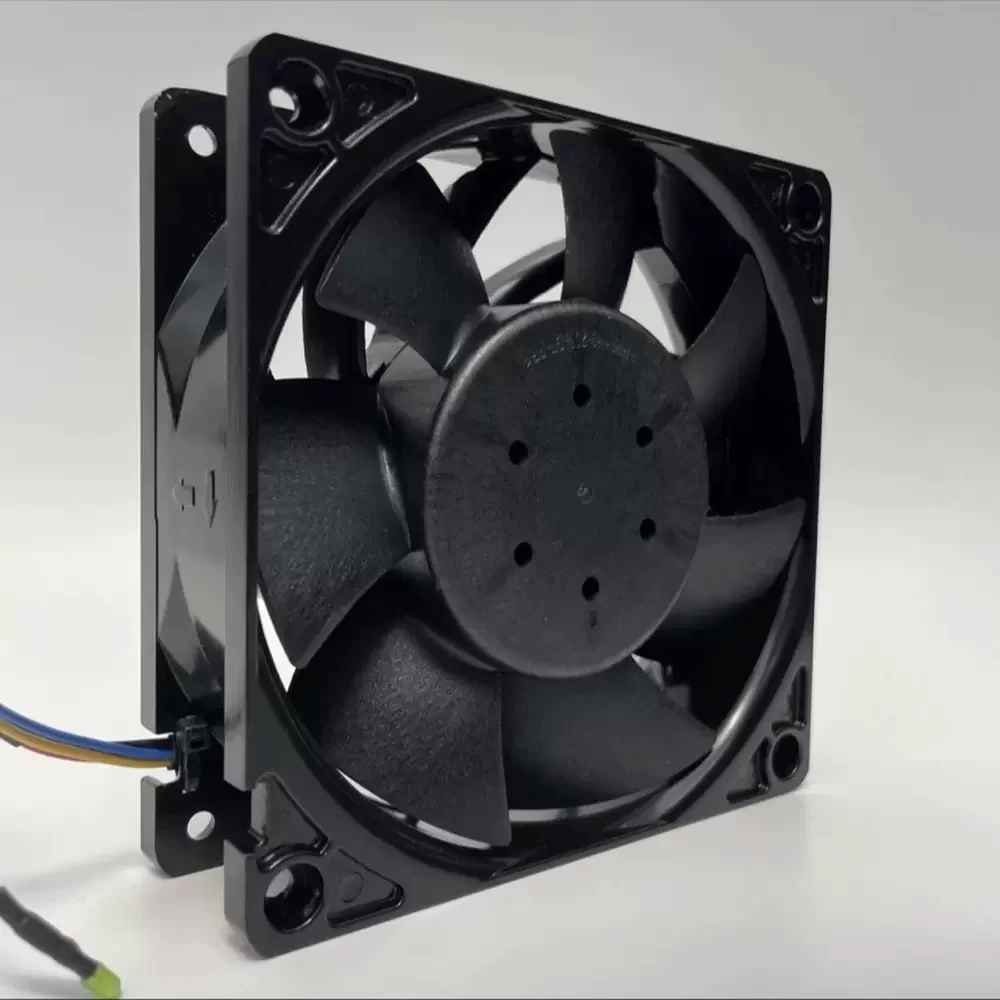

THA1212BE-CE1V Delta 12VDC 6.50A 120x120x38mm Axial Fan

Description

Delta THA1212BE-CE1V 120 x 120 x 38 mm 12 VDC 6.50 A 310.0 CFM axial fan is a high-performance thermal management solution featuring a die-cast aluminum frame and a UL 94V-0 rated plastic impeller. The unit is powered by a brushless DC motor utilizing a dual ball bearing system to support a rotational speed of 7,000 RPM. It incorporates a 4-wire interface providing pulse width modulation (PWM) speed regulation and a frequency generator (tachometer) signal for precise monitoring. The internal circuitry includes locked rotor protection and polarity protection to ensure operational stability under high-load conditions.

THA1212BE-CE1V Specifications
Model: THA1212BE-CE1V
Brand: Delta Electronics
Product Category: DC Axial Fan
Frame Size: 120 x 120 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 6.50 A
Rated Input Power: 78.0 W
Rated Speed: 7,000 RPM
Maximum Airflow: 310.0 CFM (8.78 m³/min)
Maximum Static Pressure: 3.50 inH2O (871.5 Pa)
Noise Level: 75.0 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Plastic (UL 94V-0)
Termination: 4-wire Lead Wires (UL 1430 AWG #22)
Control Type: PWM Speed Control
Output Type: Tachometer / Frequency Generator
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 470 g
Safety Approvals: UL, TUV, CE

THA1212BE-CE1V Applications
Primary applications include integration into high-density server enclosures, telecommunications base stations, and automotive radiator cooling systems. Deployed within industrial power conversion equipment and high-performance computing clusters requiring significant static pressure for airflow through dense heat sinks.
